FCD TGF Trigger Guard
$22.00
Forward Controls Design TGF (Trigger guard – Forward Controls) is designed to give as much unchanged space in front of the trigger bow as possible.
Extended length fills the gap that normally exists between the grip and milspec guards.
TGF uses a roll pin and set screw for installation. A 1/16″ hex wrench (not included) will be required for installation.

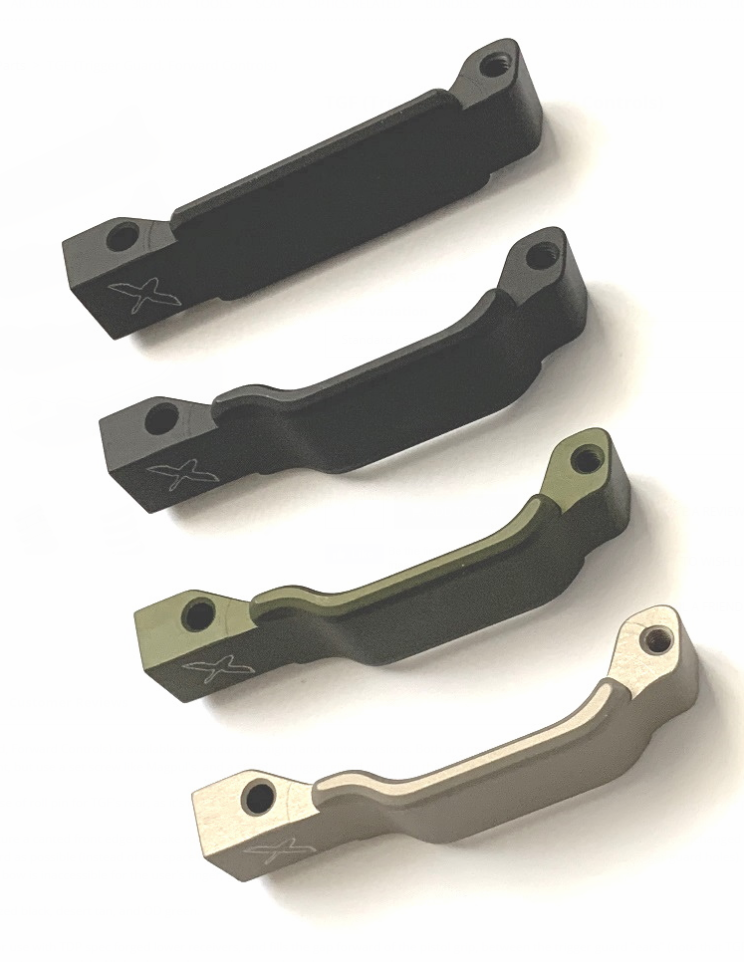

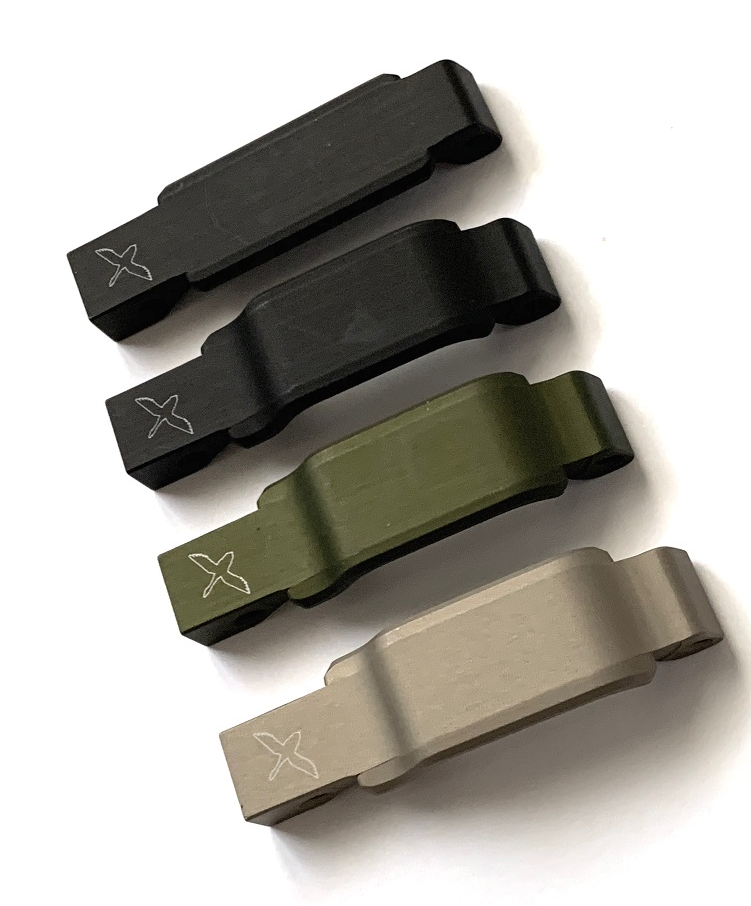

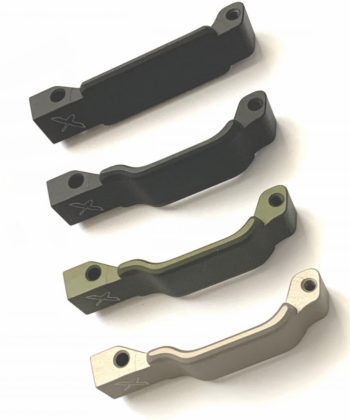

Available in straight and winter designs in black, OD green, and FDE anodizing.
Please note that due to variations in lower receivers, you may notice different fitment across various brands of receivers.
NOTE from FCD;
TDP width for the trigger guard is 0.430 +/- 0.003. TGF is 0.431 +/- 0.002. The gap between the rear trigger guard ears is 0.438 + 0.008 / -0.000. Given the rather loose tolerances of the space between the trigger guard’s rear ears, TGF (or any trigger guard, for that matter) could be just right, or slightly loose.ย This is normal.
TDP width for the trigger guard is 0.430 +/- 0.003. TGF is 0.431 +/- 0.002. The gap between the rear trigger guard ears is 0.438 + 0.008 / -0.000. Given the rather loose tolerances of the space between the trigger guard’s rear ears, TGF (or any trigger guard, for that matter) could be just right, or slightly loose.ย This is normal.
ย
We’d like to remind folks that AR15s/M16s are tools, and every part has a tolerance value.ย It isn’t an advantage or useful feature for combat weapons to be so tight that they lose their tolerance for debris, sand, and mud.ย TDP trigger guards swing down, and they wouldn’t be able to do so if any foreign object in its way can stop them from doing so.
ย
We don’t fudge and get creative with TDP specs and tolerances. If we made TGF on the wide side (didn’t even thinkย about it, but we wouldn’t do it anyway because it has problems of its own), we’d risk the TGF being too tight and not fitting Colt, LMT and BCM lower that are true to TDP specs. We design and produce duty grade components for duty/combat weapons, and we adhere to TDP specs and tolerances.
ย
If we were a fashion gear maker, perhaps we’d be more concerned about a feature that has no functional value.ย But we’re not, and will remain focused on functions, not perceptions.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Configuration | Straight, Winter |
| Color | Black, OD Green, FDE |
